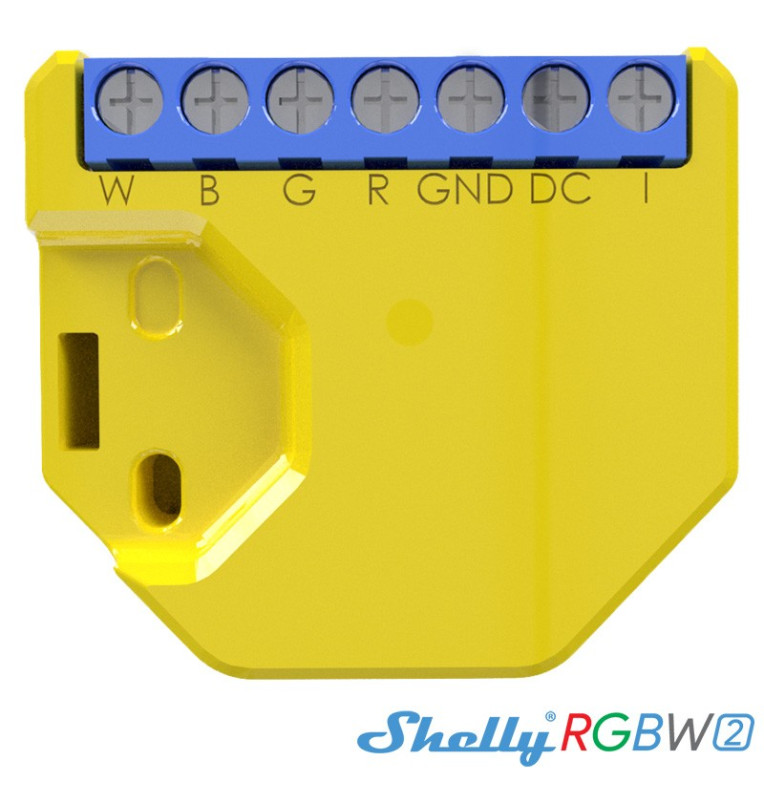

Módulo automação WiFi Shelly RGBW2
Shelly RGBW2 WiFi
Módulo para controlar fitas LED RGBW via WiFi, permite ser instalado atrás dos interruptores de parede, na própria caixa (preferência caixas fundas)
Permite controlar as fitas LED RGBW através de uma APP no smartphone.
Shelly RGBW connecta-se como qualquer controlador de fitas LED.
Suporta 12v ou 24v, Fitas Brancas, RGB, RGBW e lâmpadas LED 12/24v com uma potência máxima combinada até 288W.
Tudo isto, usando uma ligação de internet via WiFi em qualquer parte do mundo. (Necessário conexão à internet)
POWER | |
Power supply AC | No |
Power supply DC | 12 - 24V |
DC Power Output 12V per channel | 45W |
DC Power Output 24V per channel | 90W |
DC Power Output 12V combined power | 144W |
DC Power Output 24V combined power | 288W |
SPECIAL FUNCTIONS | |
Device temperature protection | No |
Overload protection | No |
Power measurement | Yes |
Dimming | Yes |
Working without neutral line | No |
FEATURES | |
Color changing | Yes |
Predefined effects | Yes |
Channels | 4 Channel |
Maximum load | 12A |
Operational temperature | -10ºC to +50ºC |
Device power consumption | < 1 W |
Intelligent On/Off | Yes |
Local and remote control | Yes |
Sunrise/Sunset | Yes |
Weekly Schedule | Yes |
UL Listed option | No |
CONNECTIVITY | |
Wireless/WiFi Protocol | 802.11 b/g/n |
Radio frequency | 2400 – 2500 MHz |
Radio signal power | 1mW |
Range | up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
DIMENSIONS | |
Size | 43mm x 38mm x 14mm |
